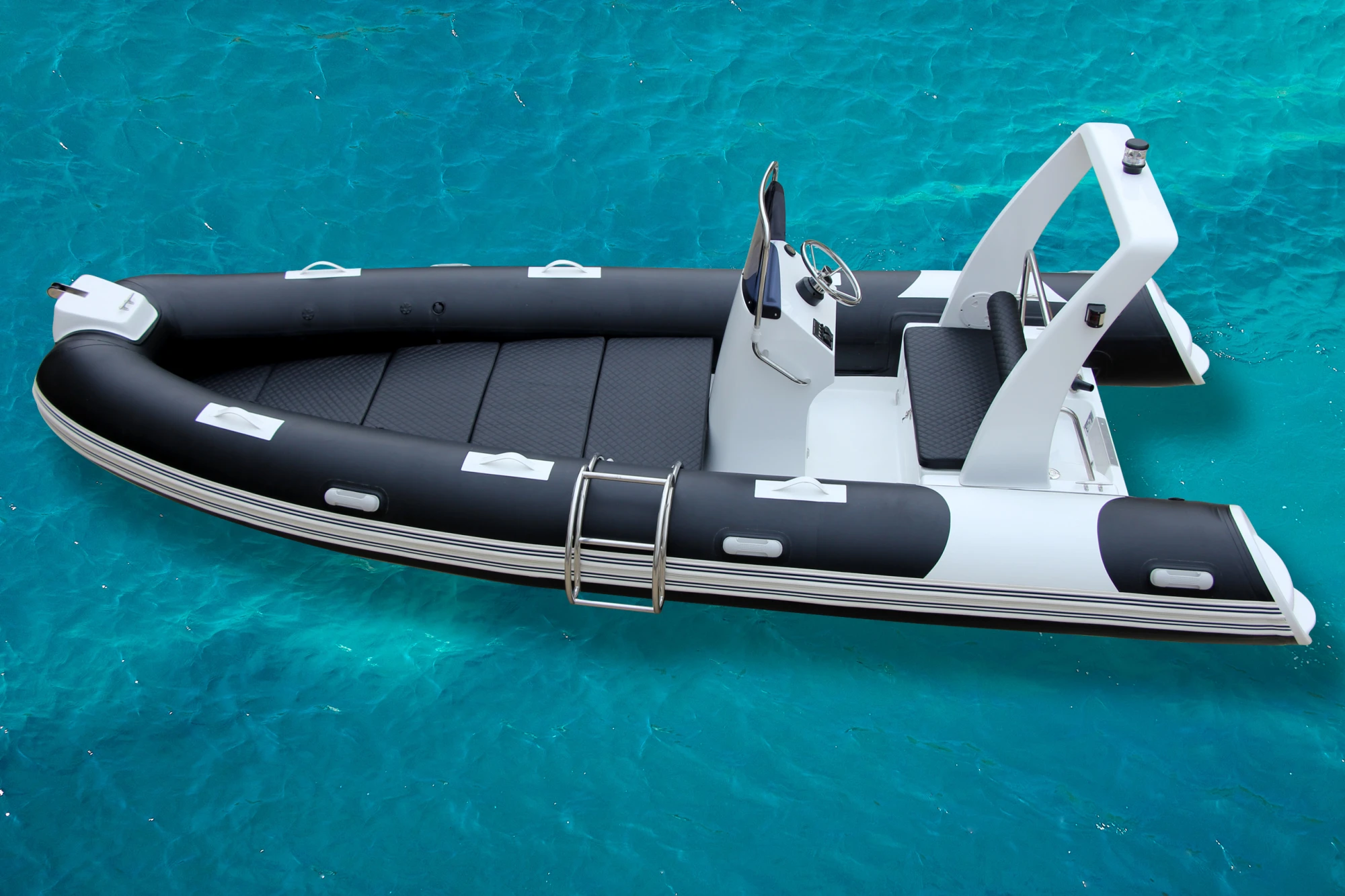

Jumbo 520
The Jumbo 520 features a durable fiberglass hull built for reliable professional use. With a 520 cm overall length, a spacious 380 cm cabin inner length, and a high 1400 kg load capacity for up to 10 people, it offers ample room and payload for demanding work. The suggested maximum power is 40 HP (29.8 kW), delivering dependable performance on the water.
Standard Equipment
Front cabin with cushion; A pair of Aluminum alloy oars; A foot pump; A Repair kit; FRP anchor seat.
| Model (SFB-XL) |
Length overall (cm) |
Length inside (cm) |
Beam overall (cm) |
Beam inside (cm) |
Max depth (cm) |
Max tube (cm) |
Independent compartments |
Max motor (HP) |
Weight (kg) |
Max payload (kg) |
Max persons |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Jumbo 520 | 520 | 380 | 200 | 102 | 51 | 50 | 40 | 310 | 1400 | 10 |
- Length overall (cm)
- 520
- Length inside (cm)
- 380
- Beam overall (cm)
- 200
- Beam inside (cm)
- 102
- Max depth (cm)
- 51
- Max tube (cm)
- 50
- Independent compartments
- Max motor (HP)
- 40
- Weight (kg)
- 310
- Max payload (kg)
- 1400
- Max persons
- 10
The rated horsepower of the outboard motor indicates the manufacturer's maximum recommended horsepower. Both the load capacity and maximum passenger capacity are reference values only. Please operate the vessel in accordance with your actual usage requirements.
